Computer Application : Work In Progress

Lower Ground Floor Plan in Autocad File

Ground Floor Plan in Autocad File

First Floor Plan in Autocad File

At first, I have traced the plans of my building designed and adjust the measurement to make it more accurate. After that, I moved the Autocad file into the 3D modeling software called Rhinoceros.

Extrude First Floor Plan

Extrude the Balcony Poles and Glass

First Step to Make Roof : Make the boundary shape of the roof and make the rail which is similar to the roof shape. After that, use the function " Rotate 3D " to rotate the boundary shape.

Use the function " Sweep 1 " to form the roof boundary automatically.

Roof Boundary done

Use the " Box " function to form the roof

Extrude one of the bar and make it solid. After that, I copy and multiply it and placed them based on the plan.

Using the same way to form the ground floor plan.

Formation of Staircases

Formation of Poles

Lower Ground Floor Extrusion

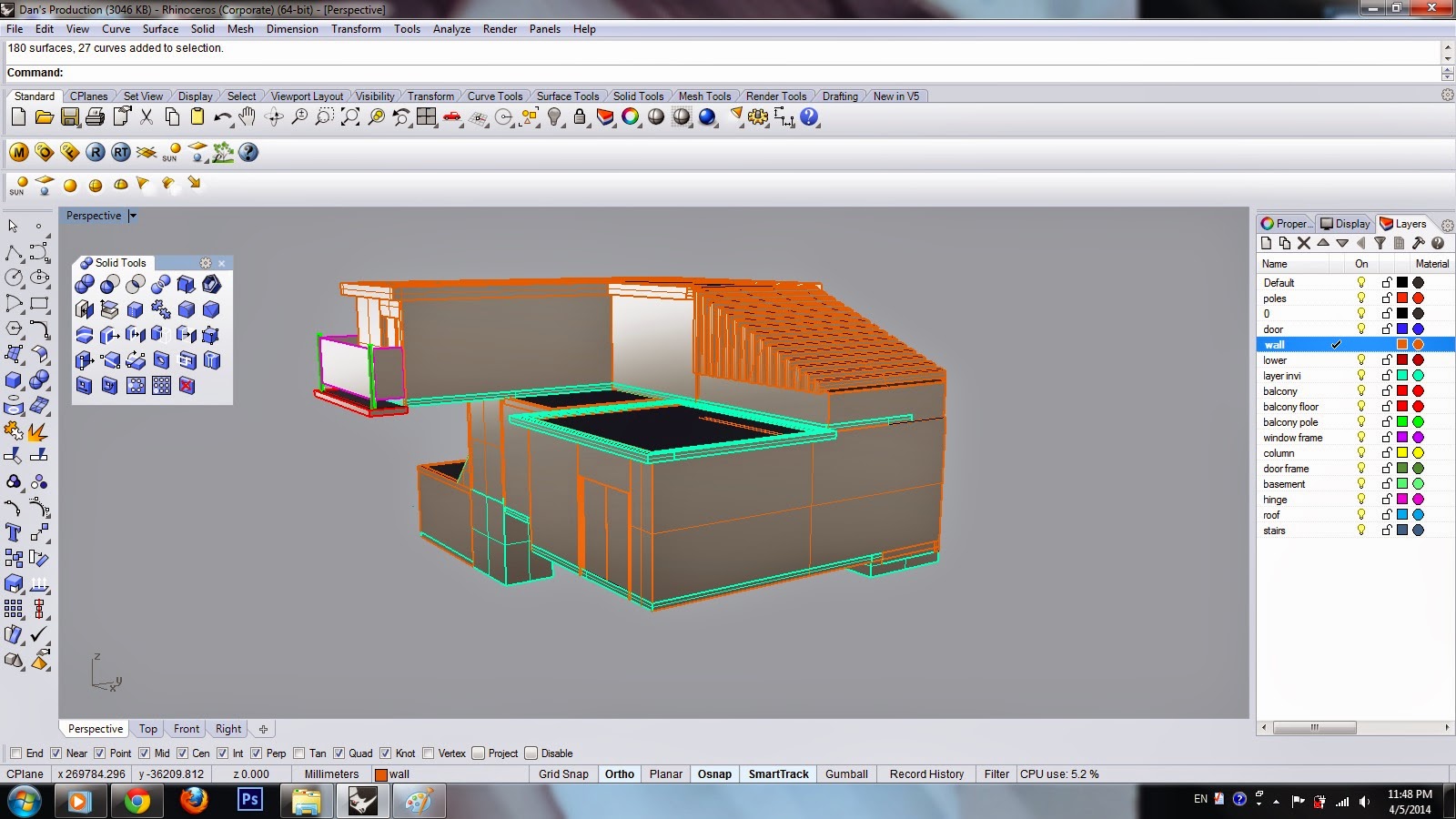

Done the Modelling

Render Mode

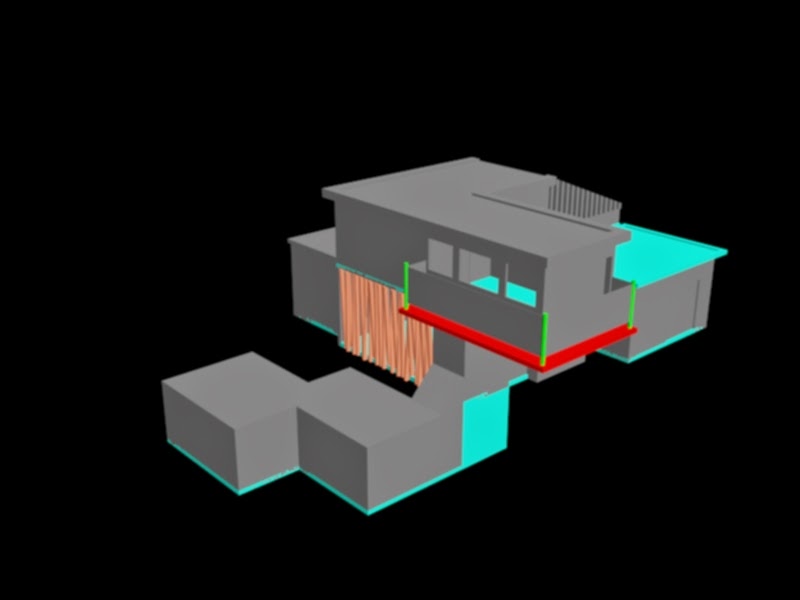

Five Angle Product

Project 2A

Exterior Rendering 1

Exterior Rendering

 Work In Progress

Select and put the materials to the object

Setting cameras in top plan view

Adjust the camera to a certain angle that I want to show.

After done all those settings, I start rendering.

Project 2B

Interior Rendering

Work In Progress

Setting up lighting and camera in top plan view. Besides, import all the furniture into the retreat house.

Setting camera and test the environment to achieve the feeling.

Besides, view from outside to see whether the furniture position is correct or not.




Project 2B

Video Rendering

Work In Progress

First, set camera and its rails as you plan how the camera will move in top plan.

I set it in top plan wireframe mode so that I can have better control of those cameras.

In between, I switch to perspective mode several times to adjust the Z-axis of  camera so the view looks better.

In perspective mode, I also zoom into the interior space to check the position of the camera and adjust the lighting effect.

Lastly, keyframe is a important issue to render a video as it works which frame with which camera and views.
